MPa公稱尺寸
DN | 殼體直徑?
mm | 連接長度L/mm | 安裝高度H/mm | | ≤2.5MPa | ＞2.5MPa | ≤2.5MPa | ＞2.5MPa |
| 0.25 ~ 10.0 | 40 | 108 | 300 | 350 | 180 | 180 |
| 50 | 108 | 300 | 350 | 180 | 180 |
| 65 | 159 | 400 | 450 | 250 | 250 |
| 80 | 194 | 420 | 500 | 250 | 250 |
| 100 | 219 | 520 | 600 | 265 | 265 |
| 125 | 273 | 660 | 700 | 400 | 400 |
| 150 | 350 | 720 | 850 | 450 | 540 |
| 200 | 400 | 800 | 900 | 540 | 650 |
| 250 | 500 | 1000 | 1100 | 650 | 700 |
| 300 | 600 | 1200 | 1300 | 750 | 800 |
| 350 | 700 | 1300 | 1400 | 850 | 900 |
| 400 | 800 | 1400 | 1600 | 900 | 1000 |
| 450 | 900 | 1500 | 1800 | 1000 | 1050 |
| 500 | 1000 | 1800 | 2000 | 1000 | 1100 |
| 600 | 1200 | 1900 | 2100 | 1200 | 1300 |
| 表中未列出的其他規格參數，請咨詢汗越閥門技術部！ |

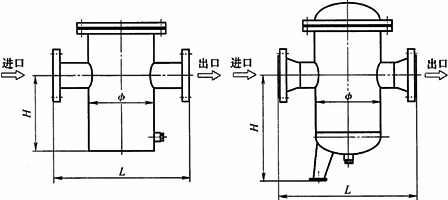

快開籃式過濾器結構圖
