Class公稱尺寸
NPS | 結構尺寸/mm | | d | SW | L1 | L | H | A |
| 1500 | ? | 6 | 14.3 | 9.5 | 92 | 53 | 50~100 |
| ? | 9 | 17.7 | 9.5 | 92 | 53 | 50~100 |
| ? | 13 | 21.9 | 9.5 | 92 | 56 | 50~100 |
| ? | 19 | 27.3 | 12.5 | 111 | 70 | 50~100 |
| 1 | 25 | 34.0 | 12.5 | 127 | 80 | 50~100 |
| 1 ? | 32 | 42.8 | 12.5 | 140 | 90 | 50~100 |
| 1 ? | 38 | 48.9 | 12.5 | 152 | 100 | 50~100 |
| 2 | 49 | 61.2 | 16.0 | 178 | 110 | 50~100 |
| 表中未列出的其他規格參數，請咨詢汗越閥門技術部！ |

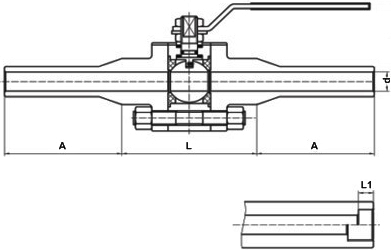

加長焊接端高壓球閥結構圖
